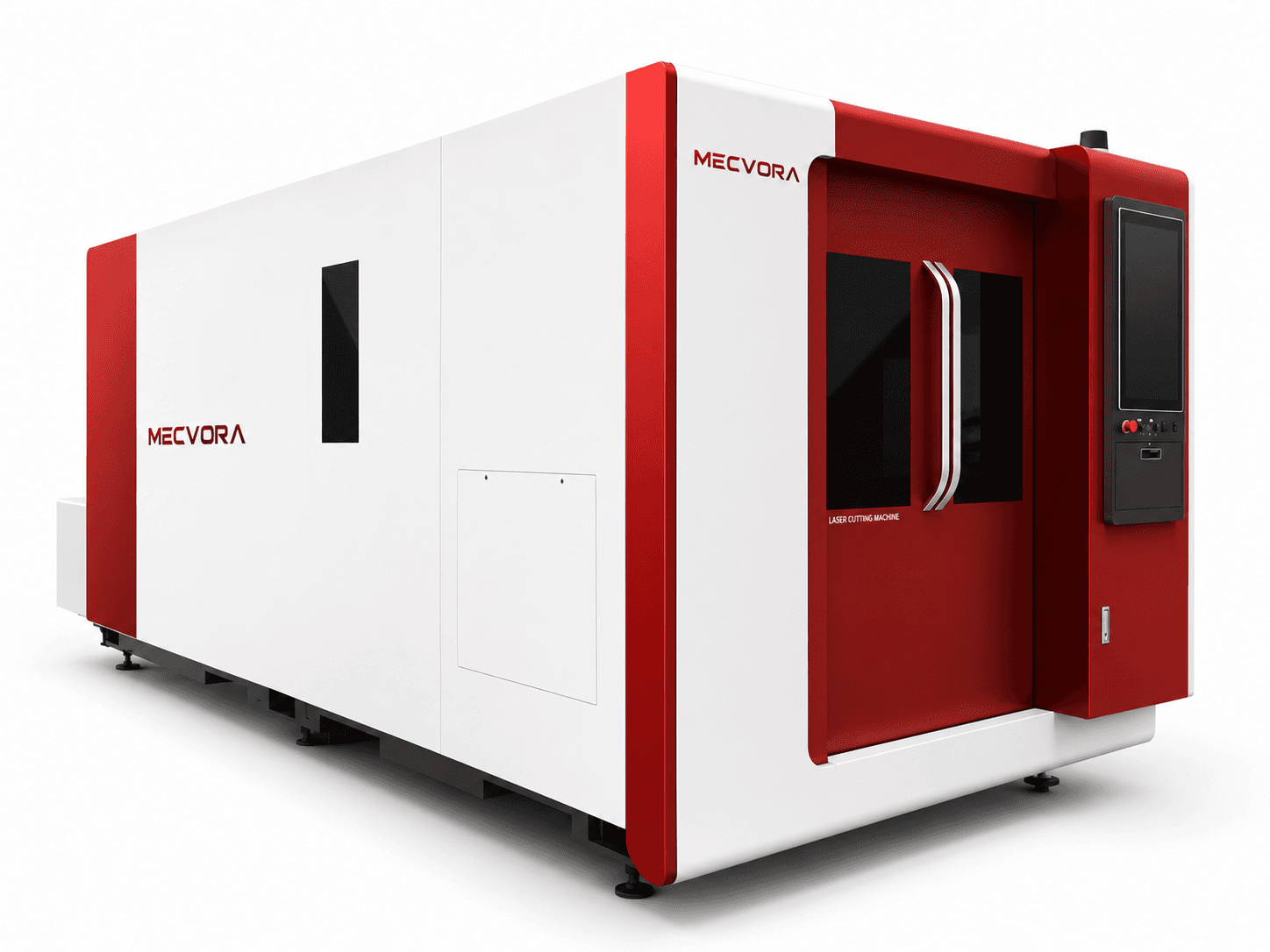

Dual-Table Sheet Metal Laser Cutter
1.5-12 kW, near-continuous productivity and low cost per part
- ✓Power: 1 500 - 12 000 W
- ✓Table: Dual interchangeable
- ✓Accuracy: ±0.03 mm
Compatible Materials
| Material | Indicative thickness (6 kW) |
|---|---|
| Carbon steel | up to ~25 mm |
| Stainless steel | up to ~12 mm |
| Aluminium | up to ~10 mm |
| Brass / copper | up to ~8 mm |
Description
If your shop is looking for a productive, reliable sheet metal laser cutter with a low cost per part, this dual-table MECVORA model delivers near-continuous output at an accessible price. Built with an efficient fiber source, an autofocus cutting head and a fully enclosed cabin, the machine changes worktables automatically, so the operator loads and unloads one table while the laser cuts on the other, with no dead time between sheets.
Technical Specifications, Sheet Metal Laser Cutter
This sheet metal laser cutter is sized to your production: power matched to common thicknesses and a standard table format for full sheets. Below are the main parameters; final specifications are defined together, based on your materials and working volumes.
| Parameter | Value |
|---|---|
| Laser source power | 1,500 – 12,000 W (per configuration) |
| Working area | 3,050 × 1,530 mm (standard) |
| Worktables | Dual, automatically interchangeable |
| Positioning speed | up to 140 m/min |
| Max acceleration | up to 1.5 G |
| Positioning accuracy | ±0.03 mm |
| Repeatability | ±0.02 mm |
| Source type | Premium fiber (Raycus / IPG) |
| Cutting head | Autofocus with automatic Z-axis adjustment |
| Control system | Dedicated CNC with automatic nesting |
| Protection | Fully enclosed cabin |
| Certification | CE |
Why MECVORA?
When you choose a sheet metal laser cutter from MECVORA, you get more than the machine, you get a long-term technical partner:
- Premium-grade technology, a premium fiber source, an autofocus head and CNC control with nesting, the exact components used in machines several times more expensive.
- Direct-manufacturer price, direct supply with no chain of intermediaries inflating the price; you invest in technology and components, not in markups.
- Extended warranty, long-term coverage on the machine and critical components, a worry-free investment in a machine you rely on daily.
- Technical advice at purchase, we help you size source power for your type of orders, so you never pay for unused capacity.
- Everything installation-related, included, pre-delivery testing, transport, commissioning and operator training, handled by a team that understands the rhythm of production shops.
- Long-term local support, spare parts available, rapid intervention and, on request, sourcing for equipment not listed on the site.
- CE compliance, certified components and conformity documentation, built to international standards.
With a dual table for near-continuous productivity, ±0.03 mm accuracy and a direct-manufacturer price, this sheet metal laser cutter turns every order you accept into net profit, with no hidden costs and no compromise on quality. Every month without your own machine means orders sent to subcontractors and lost margin you can never recover. The dual-table layout means you capture that margin without adding a second operator or a second shift just to keep up. Contact the MECVORA team for a configuration matched to your materials and volumes.
